Teradek Ranger Micro 750 3G-SDI/HDMI - Wireless TX/RX Set V-Mount

Add a full wireless transmission kit to your rig to transmit lossless HD video up to 750' with the Ranger Micro 750 3G-SDI/HDMI Wireless Transmitter/Receiver Kit from Teradek. Redesigned for broadcast, event, drone, and handheld applications, this transmitter/receiver set can input up to 1080p60 video over HDMI or 3G-SDI and transmit up to 750' away to the receiver, which can output to HDMI or 3G-SDI.

The set supports transmission of up to 1080p60 video to up to six receivers and features built-in AES-256 encryption that protects your video from prying eyes. You can set up the set using a desktop Launchpad software application or the Launchpad app for iOS or Android that easily connects via Bluetooth 5, which both provide a spectrum analyzer, channel selection tools, and remote configuration. Each unit is powered using a 2-pin DC input, and the receiver can be powered using the included V-mount battery plate.

Read more below about the items in this kit.

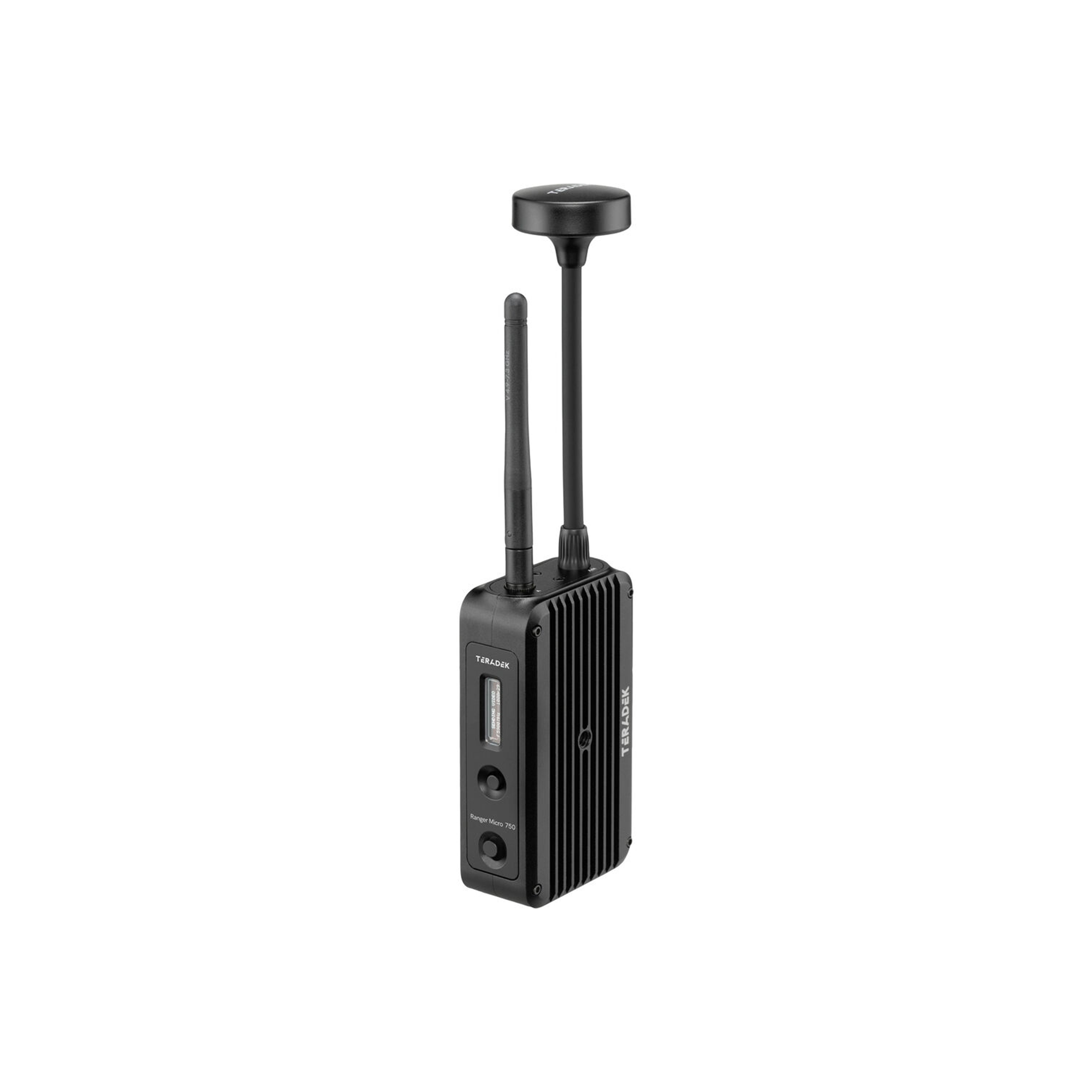

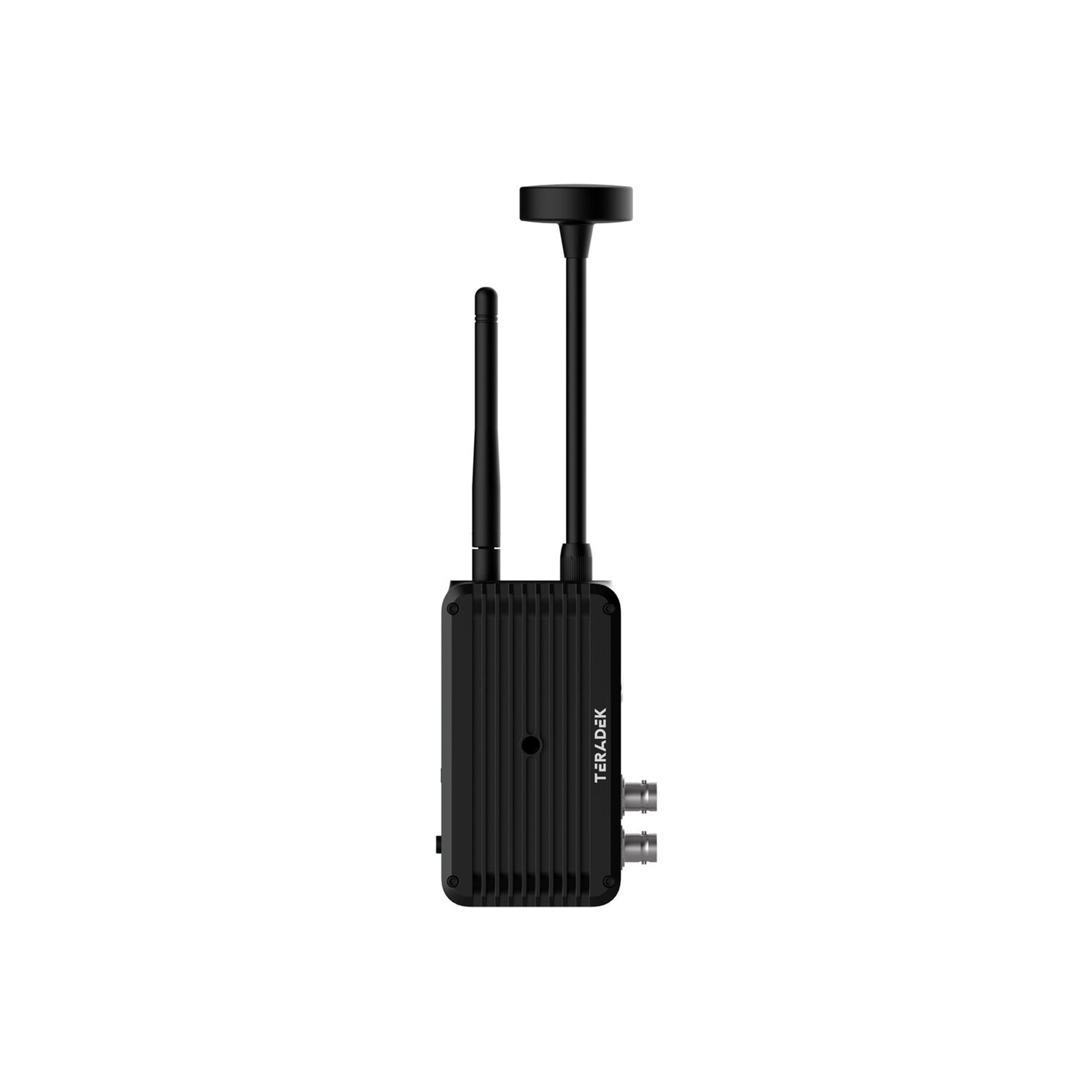

Teradek Ranger Micro 750 3G-SDI/HDMI Wireless Transmitter

Transmit lossless HD video up to 750' with the Ranger Micro 750 3G-SDI/HDMI Wireless Transmitter from Teradek. Redesigned for broadcast, event, drone, and handheld applications, this transmitter can input up to 1080p60 video over HDMI or 3G-SDI with 10-bit HDR support and transmit up to 1080p60 video over a wide 4.9 to 6.4 GHz wireless range, including licensed and unlicensed bands in the 6 GHz U-NII 5 spectrum. The transmitter unit provides a powerful signal that can travel up to 750' line of sight. It also features an SDI loop output for local monitoring, and one horizontal and one vertical N-type antenna.

The transmitter supports transmission of up to 1080p60 video to up to six receivers and features built-in AES-256 encryption protects your video from prying eyes. It can transmit visually lossless video to any Ranger series receiver with zero delay. The transmitter supports a desktop Launchpad software application or the Launchpad app for iOS or Android that easily connects via Bluetooth 5, which both provide a spectrum analyzer, channel selection tools, and remote configuration.

The unit is powered using a 2-pin DC input, and there are 1/4"-20 and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs.

Key Features

Premium Wireless Hardware

State-of-the-art hardware. Designed for professional video production. The Ranger Series is powered by Teradek's Emmy and Academy Award-winning technology for zero-delay wireless video transmission. This model boasts a maximum range of 750', and it works seamlessly within a variety of professional broadcast, sports, and ENG applications, including handheld gimbals, drones, and shoulder-mounted production cameras.

Ranger Compatibility

Pair any combination of Ranger TX and RX together, regardless of model. That means your production can quickly scale and operate a variety of Ranger systems best suited to your environment, despite differences in transmission range. Mixed Ranger systems operate with a range of the lowest paired model. 6 GHz operation requires support on both the TX and RX.

Zero Delay

When a delay in audio and video transmission is noticeable, it's nearly impossible to offer a lifelike experience. Ranger's patented zero-delay technology solves this problem. With Ranger, your audio and video signals are transmitted with ultra-low latency, even in 1080p60, providing a visually lossless and engaging experience for your viewers.

Configure Ranger from PC or Phone

• Install the Launchpad app on your macOS or Windows computer, or on iOS/Android phone
• Bluetooth 5 LE connection support
• Pair transmitters and receivers with the touch of a button
• Measure and analyze the frequency and amplitude of a signal
• View live channel strength for licensed/unlicensed bands
• Monitor your live RF spectrum bandwidth

Wide Transmission Frequency Range

With the number of wireless devices on the rise, and a limited amount of frequency bands to choose from, there is little room for your signal to move without interference or disruption. But with Ranger, you have options: 5 GHz for general use, licensed band frequencies for special events, and the new 6 GHz U-NII-5 band for 12 new channels of uncongested wireless spectrum.

Key Features

• Transmitter/V-Mount Receiver Set
• Supports 4.9 to 6.4 GHz Frequency Bands
• Transmit Video up to 750' Line of Sight
• 3G-SDI and HDMI Input/Output
• Lossless Transmission with Zero Delay
• 1080p60 10-Bit 4:2:2 HDR Support
• Supports Transmission to up to 6 x RXs
• Pairs with all Ranger Series Devices
• AES-256 Encryption, 2 x Antennas
• Launchpad App, Spectrum Analyzer

In The Box

• Teradek Ranger Micro 750 3G-SDI/HDMI Wireless Transmitter
• 2 x N-Type Antenna
• Limited 1-Year Manufacturer Warranty
• Teradek Ranger Micro 750 3G-SDI/HDMI Wireless Receiver (V-Mount)
• 5 x 2 dBi Antenna
• V-Mount Battery Plate
• Limited 1-Year Manufacturer Warranty
