Teradek Ranger Micro 750 3G-SDI/HDMI - Wireless RX V-Mount

Transmit lossless HD video up to 750' with the Ranger Micro 750 3G-SDI/HDMI Wireless Receiver from Teradek. Redesigned for broadcast, event, drone, and handheld applications, this receiver can receive up to 1080p60 video over a wide 4.9 to 6.4 GHz wireless range, including licensed and unlicensed bands in the 6 GHz U-NII 5 spectrum, and it can output up to 1080p60 video over HDMI or 3G-SDI with 10-bit HDR support. The receiver unit supports a powerful signal that can travel up to 750' line of sight. It also features five external antennas.

When pairing with a Ranger transmitter, this unit can receive up to 1080p60 video alongside up to five other receivers, and it features built-in AES-256 encryption protects your video from prying eyes. It can receive visually lossless video from any Ranger series receiver with zero delay. The receiver supports a desktop Launchpad software application or the Launchpad app for iOS or Android that easily connects via Bluetooth 5, which both provide a spectrum analyzer, channel selection tools, and remote configuration.

The unit is powered using a 2-pin DC input or via the included V-mount battery plate, and there are 1/4"-20 and M3 mounting threads to mount onto a variety of cameras, cages, or rigs.

Key Features

Premium Wireless Hardware

State-of-the-art hardware. Designed for professional video production. The Ranger Series is powered by Teradek's Emmy and Academy Award-winning technology for zero-delay wireless video transmission. This model boasts a maximum range of 750', and it works seamlessly within a variety of professional broadcast, sports, and ENG applications, including handheld gimbals, drones, and shoulder-mounted production cameras.

Ranger Compatibility

Pair any combination of Ranger TX and RX together, regardless of model. That means your production can quickly scale and operate a variety of Ranger systems best suited to your environment, despite differences in transmission range. Mixed Ranger systems operate with a range of the lowest paired model. 6 GHz operation requires support on both the TX and RX.

Zero Delay

When a delay in audio and video transmission is noticeable, it's nearly impossible to offer a lifelike experience. Ranger's patented zero-delay technology solves this problem. With Ranger, your audio and video signals are transmitted with ultra-low latency, even in 1080p60, providing a visually lossless and engaging experience for your viewers.

Configure Ranger from PC or Phone

• Install the Launchpad app on your macOS or Windows computer, or on iOS/Android phone
• Bluetooth 5 LE connection support
• Pair transmitters and receivers with the touch of a button
• Measure and analyze the frequency and amplitude of a signal
• View live channel strength for licensed/unlicensed bands
• Monitor your live RF spectrum bandwidth

Wide Transmission Frequency Range

With the number of wireless devices on the rise, and a limited amount of frequency bands to choose from, there is little room for your signal to move without interference or disruption. But with Ranger, you have options: 5 GHz for general use, licensed band frequencies for special events, and the new 6 GHz U-NII-5 band for 12 new channels of uncongested wireless spectrum.

Key Features

• Supports 4.9 to 6.4 GHz Frequency Bands
• Receive from up to 750' Line of Sight
• 3G-SDI and HDMI Output
• V-Mount Battery Plate
• Lossless Transmission with Zero Delay
• 1080p60 10-Bit 4:2:2 HDR Support
• Pairs with all Ranger Series Devices

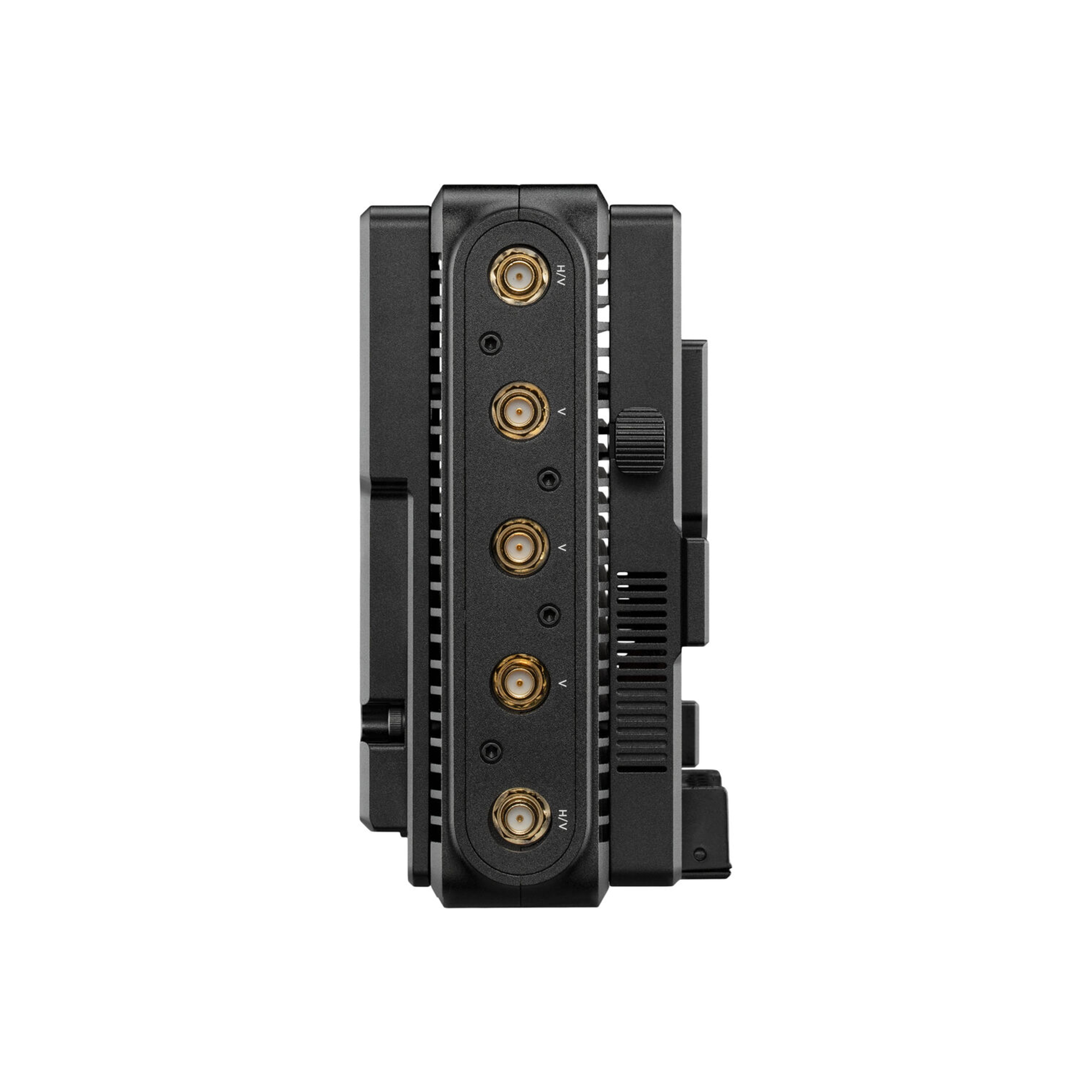

• AES-256 Encryption, 5 x Antennas
• Launchpad App, Spectrum Analyzer

In The Box

• Teradek Ranger Micro 750 3G-SDI/HDMI Wireless Receiver (V-Mount)
• 5 x 2 dBi Antenna
• V-Mount Battery Plate
• Limited 1-Year Manufacturer Warranty
