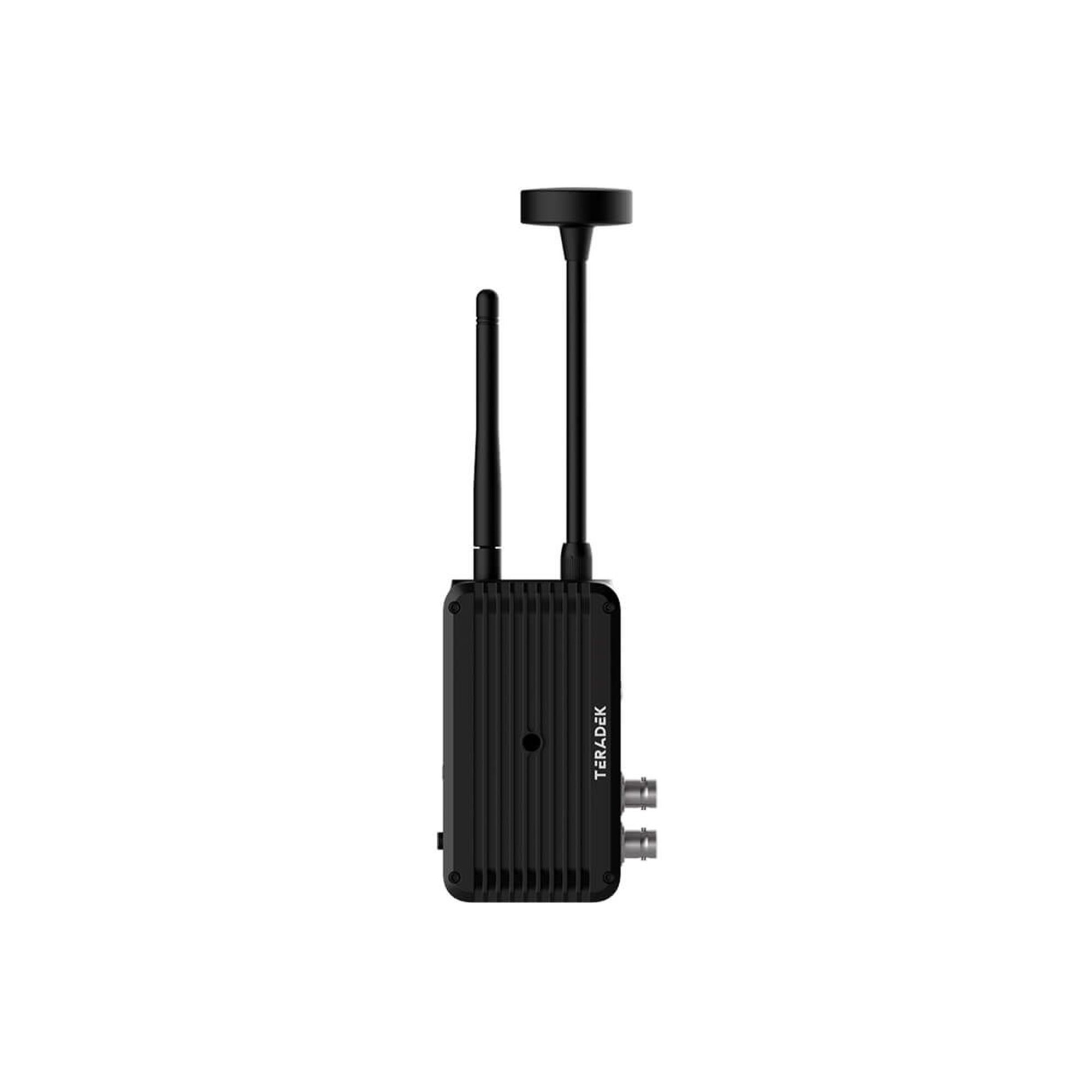

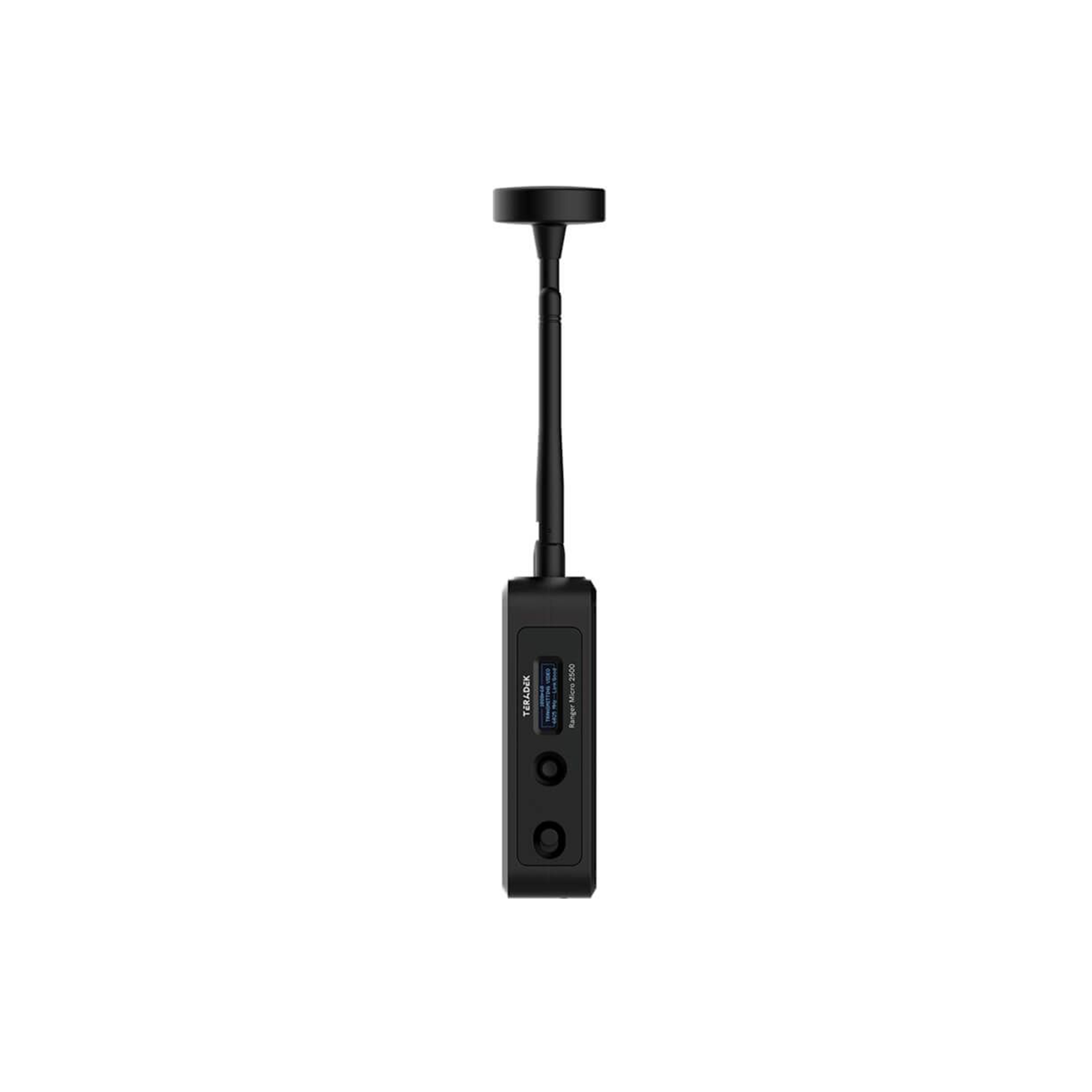

Teradek Ranger Micro 5000 3G-SDI/HDMI - Wireless TX No Mount

Teradek Ranger Micro 5000 3G-SDI/HDMI Wireless TX Transmitter No Mount - TER-10-2556

FEATURES
Zero-delay wireless video for live production
ZERO-DELAY
Go from TX to RX in .001 seconds – perfect for IMAG and live event production
VISUALLY LOSSLESS 4K HDR
Transmit video in exceptional detail – superior to HEVC and H.264 solutions
AES-256 ENCRYPTION
Keep your video transmission confidential and secure
GRANULAR FREQUENCY CONTROL
Make adjustments to the frequency of your signal in 5MHz increments
LICENSED & UNLICENSED FREQUENCIES
Operate from 4.9GHz to 6.4GHz on licensed and unlicensed bands
INTERCOMPATIBLE
Pair any previous and current Ranger systems together

EXPERIENCE ZERO-DELAY
The average latency for RF-based wireless video transmission is 30.8ms. But the human eye can detect a delay as low as 13ms. That’s why we designed Ranger: the only wireless video solution to achieve true zero-delay (<1ms) with visually lossless picture quality. And now with 6GHz support (U-NII 5), you gain access to 12 newly-opened RF channels – allowing you to operate without interference.

PREMIUM WIRELESS VIDEO FOR BROADCAST
State-of-the-art hardware. Designed for professional video production. The Ranger Series is powered by our Emmy® & Academy Award-winning technology for zero-delay wireless video transmission. It boasts a maximum range of 5,000 feet (1,524 meters). And it works seamlessly within a variety of professional broadcast, sports, and ENG applications, including hand-held gimbals, drones, and shoulder-mounted production cameras.

LICENSED & UNLICENSED BANDS
With the number of wireless devices on the rise, and a limited amount of frequency bands to choose from, there is little room for your signal to move without interference or disruption. But with Ranger, you have options: 5 GHz for general use, licensed band frequencies for special events, and the new 6 GHz U-NII-5 band for 12 new channels of uncongested wireless spectrum.

See if your area supports 6 GHz >

PATENTED ZERO-DELAY TECHNOLOGY
When a delay in audio and video transmission is noticeable, it’s nearly impossible to give your fans a lifelike experience. Ranger’s patented zero-delay technology solves this problem. With Ranger, your audio and video signals are transmitted with ultra-low latency – even in 4K60 – providing a visually lossless and engaging experience for your viewers.

RANGER CROSS-COMPATIBILITY
Pair any combination of Ranger TX and RX together – regardless of model. That means your production can quickly scale and operate a variety of Ranger systems best suited to your environment, despite differences in transmission range*.
*Mixed Ranger systems operate with a range of the lowest paired model. 6 GHz operation requires support on both the TX and RX.

CONFIGURE RANGER FROM YOUR PHONE
Command your wireless workflow from the palm of your hand.
Pair transmitters and receivers with the touch of a button
Measure and analyze the frequency and amplitude of a signal
View live channel strength for licensed/unlicensed bands
Monitor your live RF spectrum bandwidth

Key Features

• Range (in feet): 750, 2500, 5000
• Broadcast Mode: 5000ft Models Only
• Frequencies Supported Licensed
• 4.850-5.150 GHz
• 5.350-5.470 GHz
• 5.850-5.925 GHz
• Unlicensed
• 5.150-5.250 GHz (Non-DFS)
• 5.250-5.350 GHz (DFS)
• 5.470-5.725 GHz (DFS)
• 5.725-5.850 GHz (Non-DFS)
• 5.925-6.425 GHz (U-NII-5)
• RF Power: 21 dbm EIRP
• Multicast : 1:6
• Suggested Form Factor Prosumer Cameras: Gimbals, Rigging, Drones
