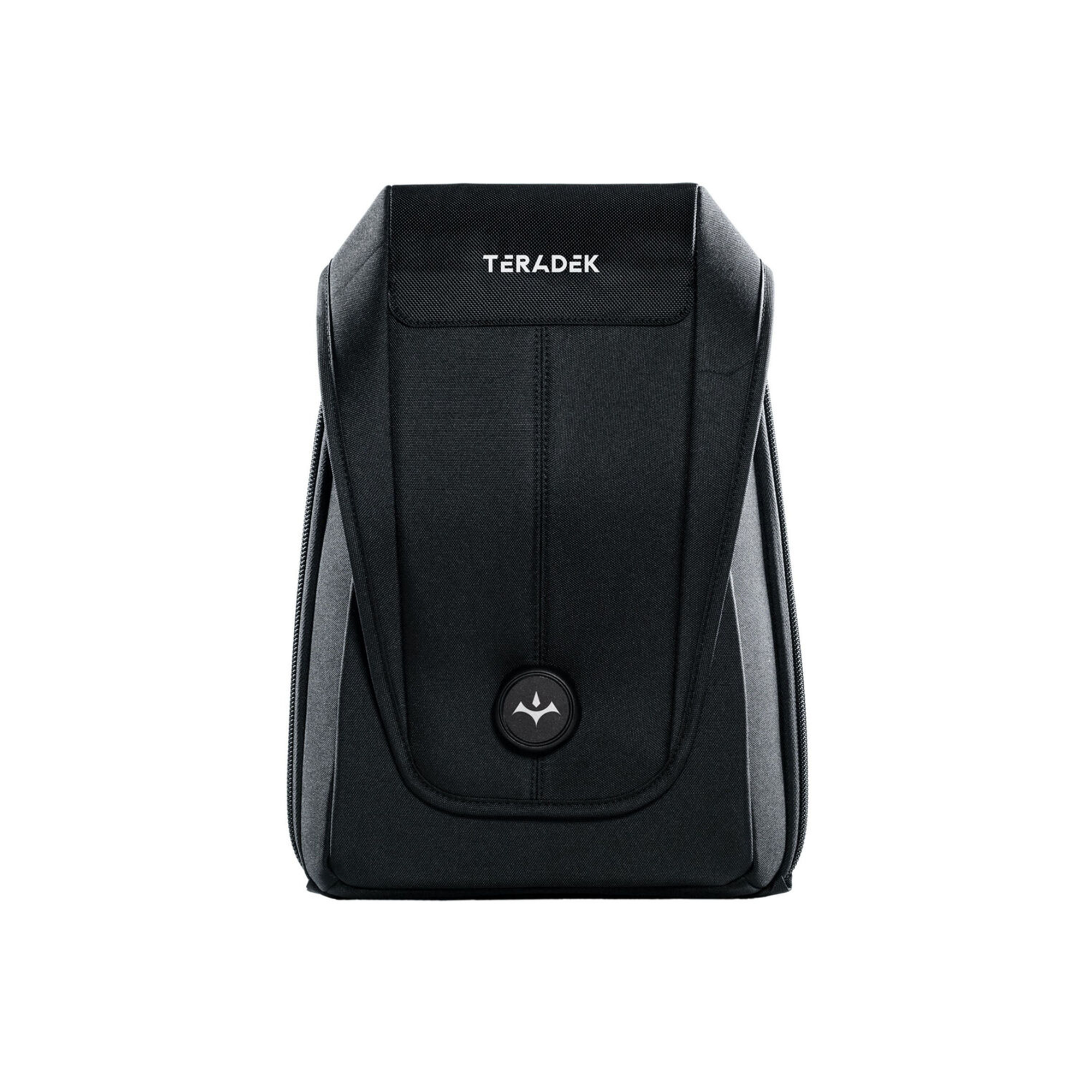

Teradek Prism Mobile Backpack - V Mount - 2x LTE
Teradek Prism Mobile Backpack - V Mount - 2x LTE
Icily Durban
14 Belladonna Road
Unit 17 Boulevard Park, Cornubia
Blackburn
KwaZulu-Natal
4339
South Africa
Broadcast to the cloud or a CDN right from your ENG or cine camera on location with the Prism Mobile Backpack with 2 x 4G LTE Node Modems from Teradek. This versatile backpack provides the Prism Mobile encoder with 12G-SDI and HDMI 2.0 inputs and multiple transmission output options that support high-resolution video up to 10-bit 4K HDR 4:2:2 with stereo or 5.1 surround sound. It supports high-quality, low-latency HEVC/H.265 and AVC/H.264 streams via cloud applications such as Teradek Core or RTMP/RTSP/SRT to servers and CDNs.
The output options include two 4G LTE modems with dual switchable SIM slots (service plans sold separately), and additional external Node modems via USB, cellular phones, Ethernet, or Wi-Fi networks. It supports bonding with any combination of streaming outputs up to a total of nine networks. You can also record your stream onto an SD card using the internal SD card slot. Management options include the OLED display or a web UI via LAN or Wi-Fi, and there is a Prism App for iOS that also provides configuration and control options.
The unit is powered via a 2-pin power input with the included power supply, or via the included Vmount battery plate to provide power via a separately available professional Vmount battery. It can be mounted onto a camera or cage using its 1/4"-20 mounting threads.
Key Features
Durable backpack with Prism Mobile and internal cabling preinstalled
12G-SDI and HDMI inputs
Includes two 4G LTE modems for network bonding; up to six simultaneous cellular connections supported
Low-SWaP Design streams for hours
Video quality up to 4K HDR | 4:2:2 | 10-bit
Stream in HEVC/H.265 and AVC/H.264 protocols: SRT, RTMP(S), MPEG-TS, and RTSP
SD card recording with store and forward
Native camera-to-cloud integrations
Camera-back features included Vmount battery plate
Stereo/5.1 surround sound
Network Bonding Support
The Prism Mobile supports bonding for a combination of up to nine network inputs:
- Four cellular phones
- Two internal Node modems
- One external modem
- Two ethernet networks
Teradek Core Cloud-Based Management Platform
Network Bonding
Stream Routing and Distribution
Remote Management and Monitoring
Transcoding and Overlays
Archiving and Live Playout
Cloud Integration
Teradek Core
Frame.io
Sony Ci
PIX
Video Resolutions Supported
DCI 4K: 23.98/24/25/29.97/30/50/59.94/60
UHD 4K: 23.98/24/25/29.97/30/50/59.94/60
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080i: 50/59.94/60
1080PsF: 23/24/25/29/30
720p: 50/59.94/60
576i
480i
Key Features
- Mobile Backpack Video Encoder
- 2 x 4G LTE Node Modems Included
- Bonding for up to 6 x Cellular Modems
- V-Mount Battery Plate
- 12G-SDI/HDMI Input, HEVC/AVC Streaming
- Encode up to 10-Bit 4K HDR 4:2:2 Video
- Camera-to-Cloud Support Including Core
- External Cellular, Wi-Fi, Ethernet
- SRT, RTMP/S, MPEG-TS, and RTSP Support
- Stereo, 5.1 Audio, SD Card Recording
In The Box
- Teradek Prism Mobile Backpack with 2 x 4G LTE Node Modems (V-Mount)
- Prism Mobile V-Mount with 2 x 4G LTE Modems
- Backpack Bonding Assembly with Cabling
- 6 x Long Multi-Band SMA Antenna
- 4 x Short Multi-Band SMA Antenna
- 3A D-Tap Power Supply
- Limited 1-Year Manufacturer Warranty
