SmallRig Video Head Mount Plate with Leveling Base CH20 4170

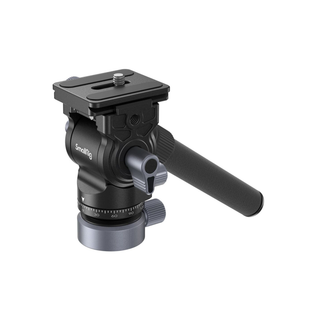

Create smooth pan and tilt moves with your small camera rig using the lightweight CH20 Video Head with Leveling Base from SmallRig. The durable aluminum fluid head features a flat 37mm base with an integrated leveling bowl for mounting onto a separately available compact tripod using its 1/4"-20 thread. It also features a 1/4"-20 accessory thread to add an optional accessory such as an extension arm. Its maximum load capacity is 8.8 lb.

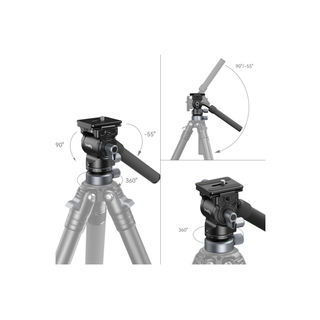

The compact head features a quick release Arca-type plate with a 1/4"-20 camera mounting screw for quick changing of your camera rig. It has a tilt range of +90 to -55°, can pan a full 360°, and features independent pan and tilt locks. The included telescoping pan handle can be installed on either the right or left side of the head, and extends from 6.9 to 9.4" in length.

Key Features

• Lightweight, Compact Aluminum Video Head
• 8.8 lb Maximum Payload
• Integrated Leveling Bowl with Flat Base
• Arca-Type Quick Release Plate
• +90/-55° Tilting, 360° Panning
• Independent Pan/Tilt Locks
• 6.9 to 9.4" Telescoping Pan Handle
• 1/4"-20 Accessory Thread

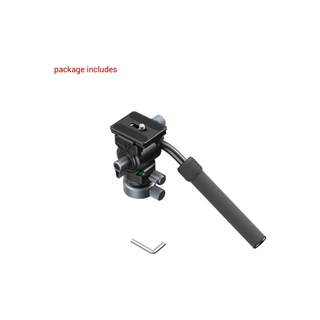

In The Box

• SmallRig CH20 Video Head with Leveling Base
• Arca-Type Quick Release Plate
• 1/4"-20 Camera Screw
• Telescopic Pan Handle
• 1/4"-20 to 3/8"-16 Screw Adapter
• Allen Key
• Limited 2-Year Manufacturer Warranty
