Hollyland
Hollyland Pyro 7 Wireless Video Transmission and Monitoring Kit
Transmit, receive, and monitor high-quality wireless video transmissions using the versatile Pyro 7 Wireless Transceiver Monitor from Hollyland. The Pyro 7 takes the previous M1 transceiver/monitor and makes everything bigger and better with a bright 7" touchscreen display, dual L-series battery plate, wireless transmission up to 1300' away, updated HollyOS imaging tools, SD card video recording, HDMI/SDI input/output, RTSP streaming, one Pyro 7 sends to up to four receivers, as well as auto dual-band 2.4/5 GHz hopping and auto-frequency hopping.
Broadcast Mode
The Pyro 7 features wireless broadcast technology that enables one transmitter to connect to up to four receivers with stable, line-of-sight signals. When Broadcast mode is activated, the transmitter can transmit signals to a maximum of four receivers, and when it's deactivated, the transmitter can transmit signals to up to two receivers and two mobile devices.
Large, Bright Monitor
The Pyro 7 features a 7" display with a brightness of 1200 cd/m², so it's clearly viewable whether you are in bright sunlight or dim environments. The screen brightness is adjustable for optimal performance.
Versatile I/O
The Pyro 7 can be switched to be a transmitter or receiver. When in transmitter mode, the monitor features one HDMI input, one SDI input, one HDMI loop output, and one SDI loop output. When in receiver mode, it features one SDI output, one HDMI output, and one SDI loop output.
Quick Source Switching
The transceiver enables seamless connection with all Pyro series units using a grouping preset. You can group multiple devices and instantly switch monitoring between two cameras by utilizing two customizable buttons.
Long Transmission Range
Utilizing 2.4 and 5 GHz dual-band technology, the Pyro 7 features a stable line-of-sight transmission range of up to 1300' with a minimal transmission latency of 60ms with no image degradation. There are two transmission modes to choose from: Smooth mode adjusts the transmission for the lowest latency for longer distances, and HD mode optimizes the image with a stable bitrate up to 12 Mb/s, even up to 1300' away.
Auto Dual-Band Hopping (ADH)
With Auto Dual-Band Hopping (ADH) and Auto Frequency Hopping (AFH) technologies operating on both 2.4 and 5 GHz bands, the Pyro 7 can automatically choose the clearest channel for reliable and uninterrupted wireless video transmission. These technologies address common issues such as signal interference, low transmission efficiency, and frequency congestion. The omnidirectional high-gain antennas also ensure stable signals in all directions.
RTMP Streaming
With built-in RTMP streaming, you can easily stream video to popular live broadcast or conferencing platforms like Zoom, YouTube Live, Twitch, TikTok Live, and more.
Video Recording to SD Card
The Pyro 7 features an SD card slot that supports extended mp4 video recording of up to 40 minutes in a single session using an external standard SD card. You can also use an SD card to apply custom LUTs during video export. It features file organization and supports a streamlined editing workflow. You can also import data from external devices and ingest on-set screenshots, overlaying them onto the current recording screen for scene restoration or replication purposes.
Image Tools
The custom shortcut key feature that can be used for dual-view monitoring can also be used to quickly launch image tools such as waveform, recording, focus assist, and other image analysis functions.
Durable Yet Lightweight Construction
The case of Pyro 7 is made of aerospace-grade magnesium-aluminum alloy with a robust, rigid design that is 30% lighter and better at heat dissipation than aluminum-only models.

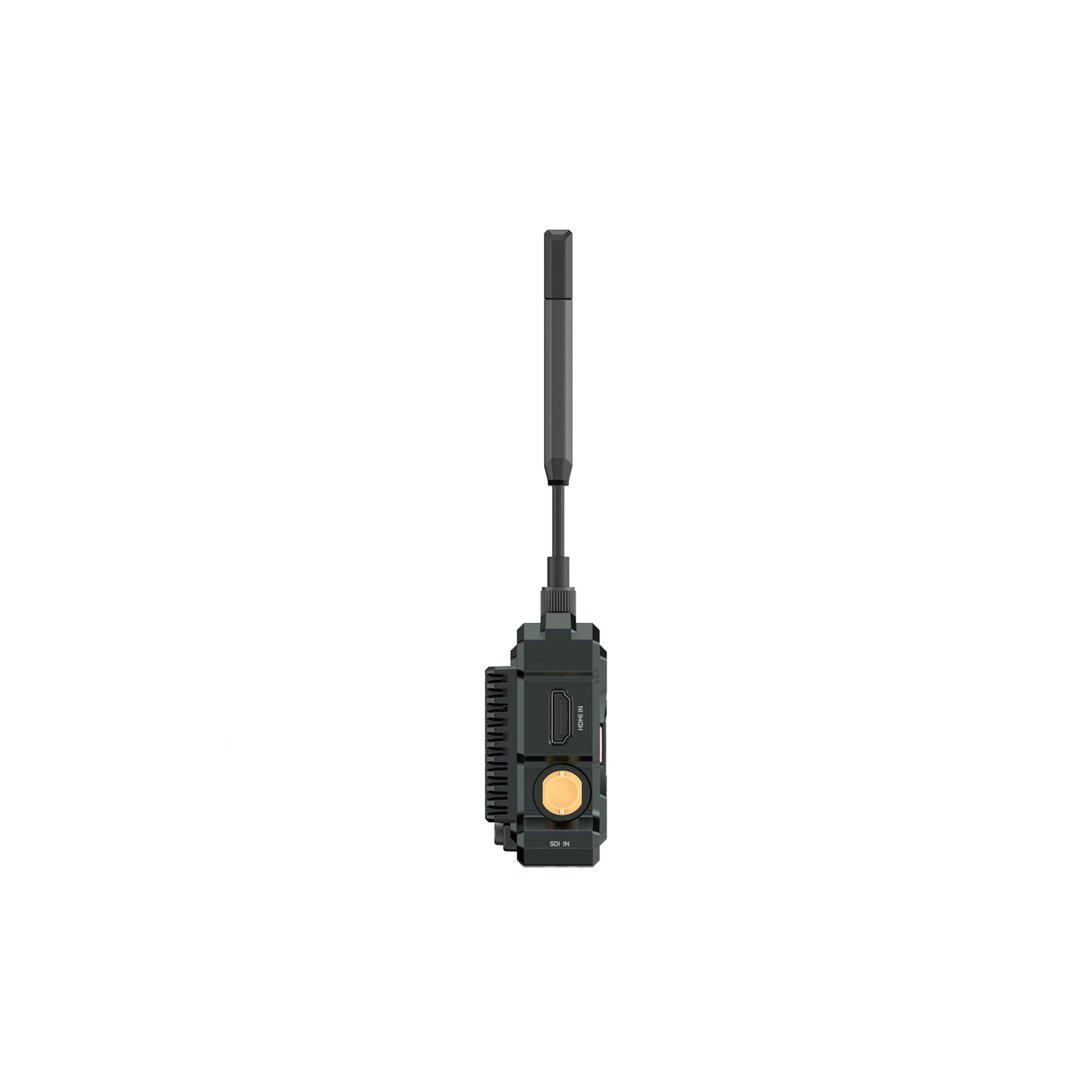

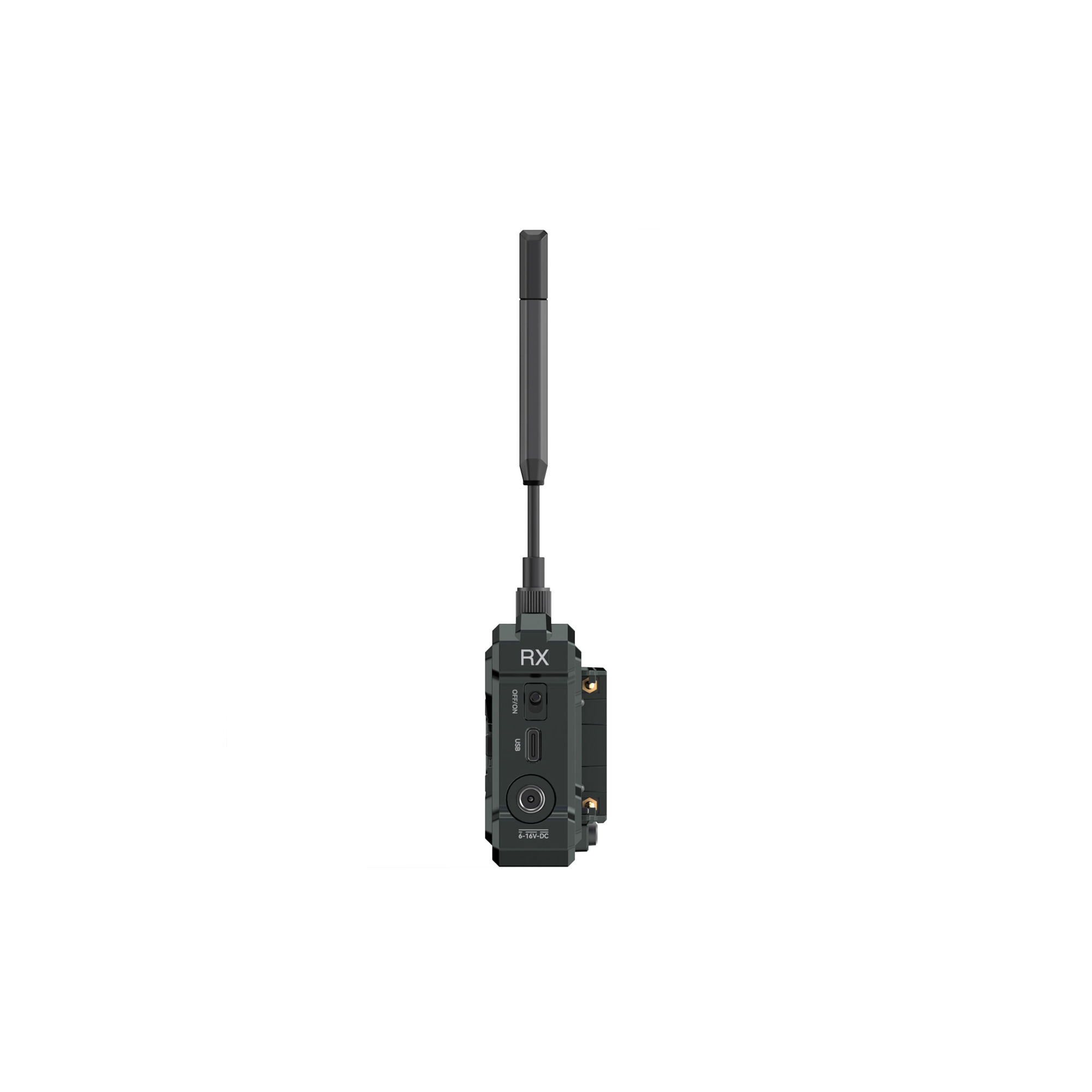

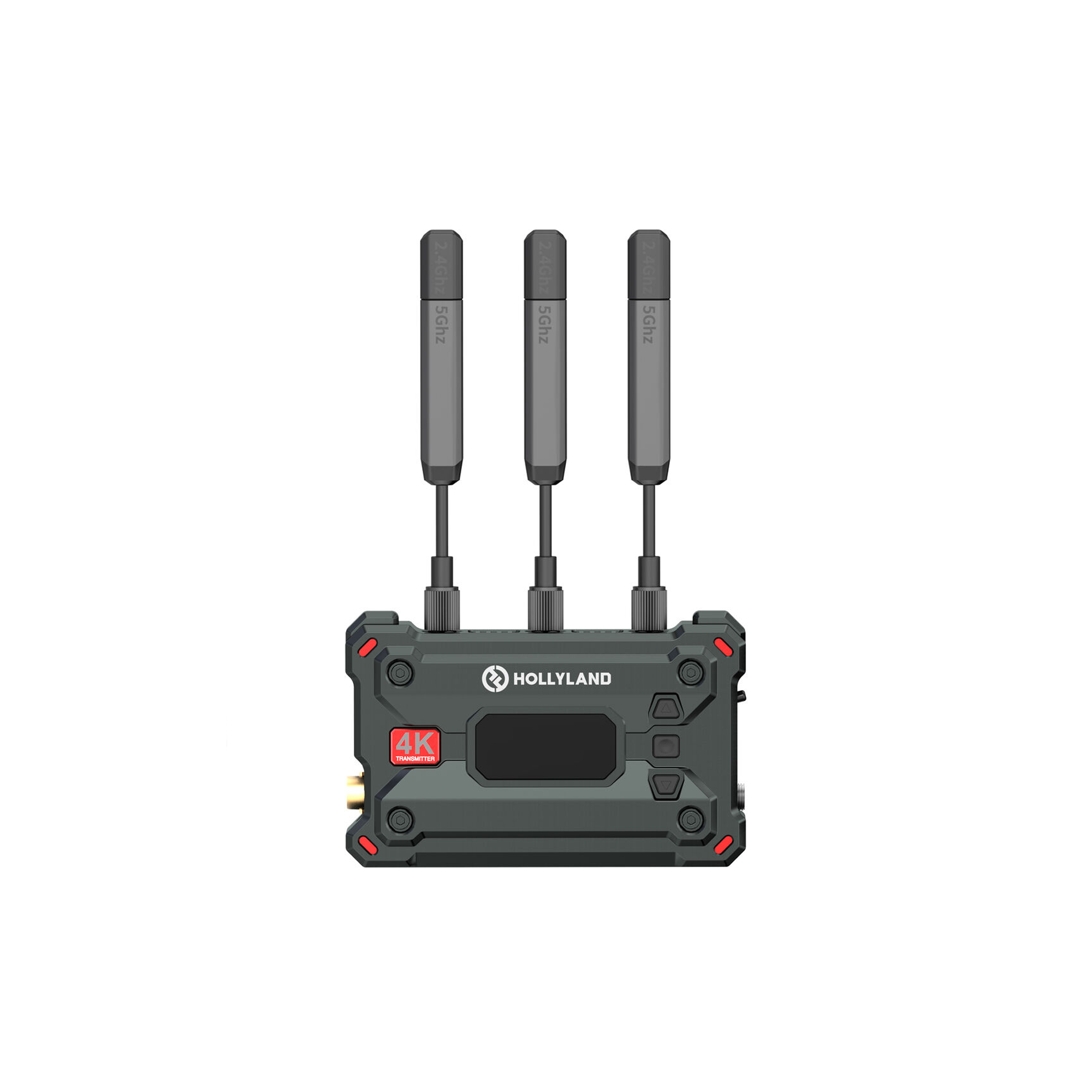

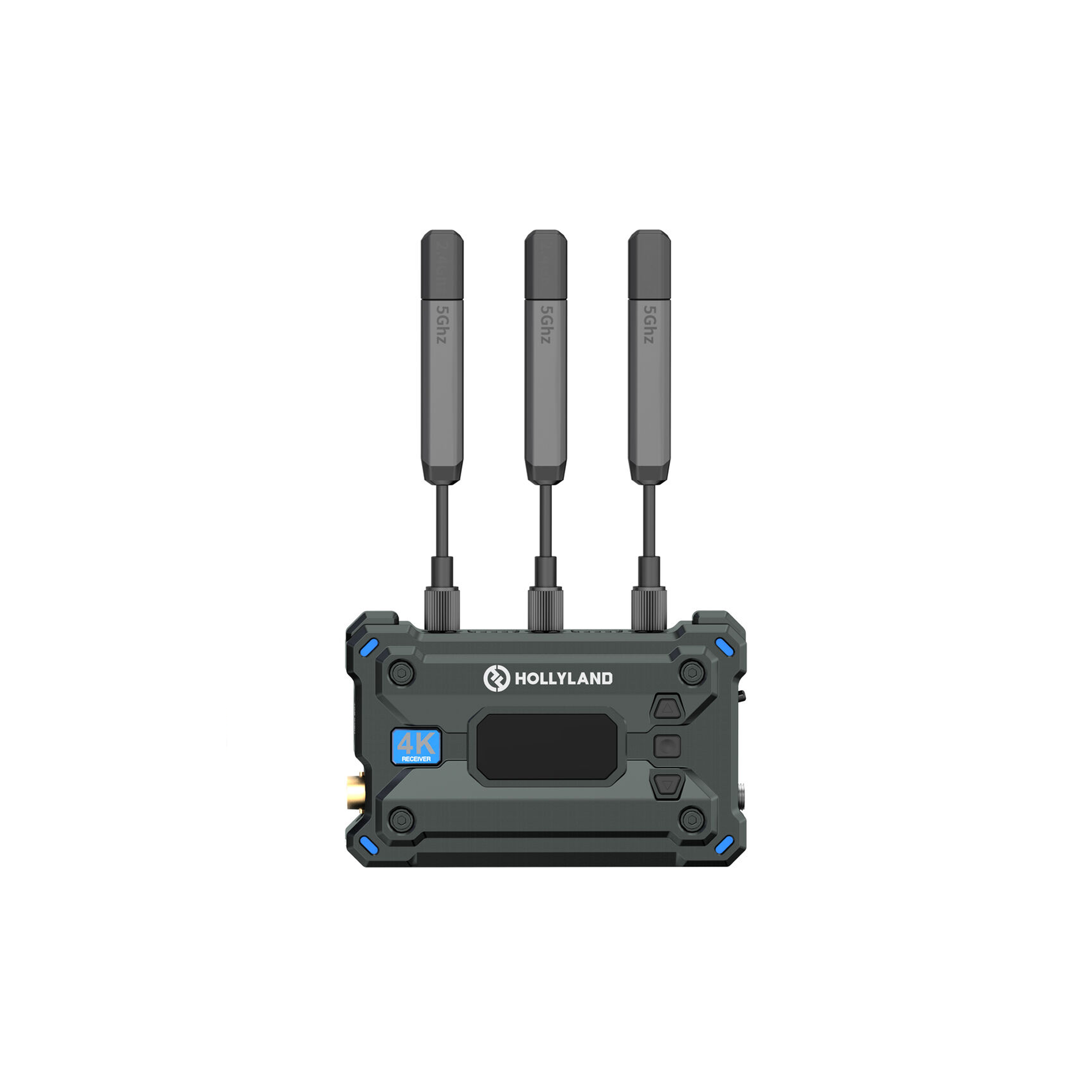

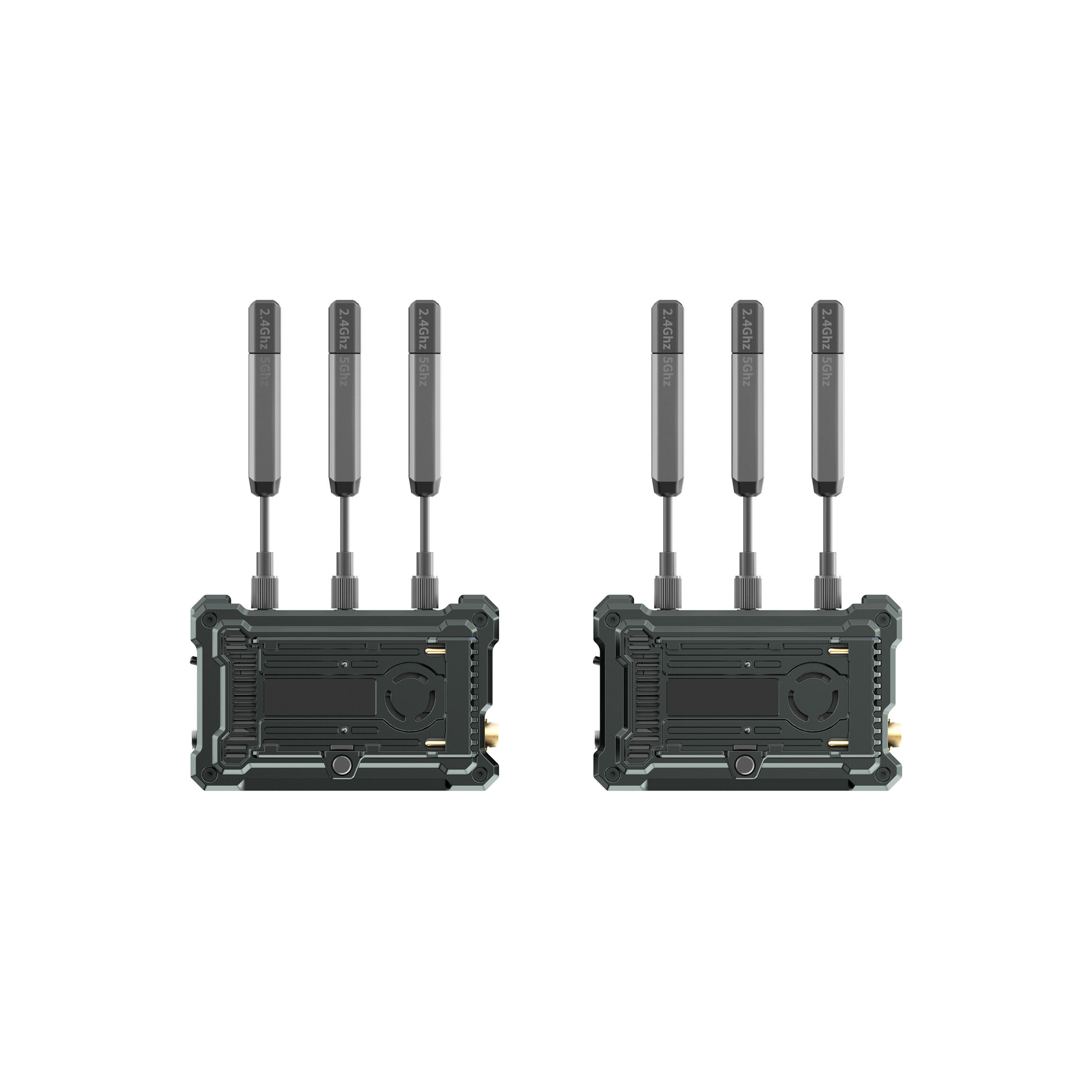

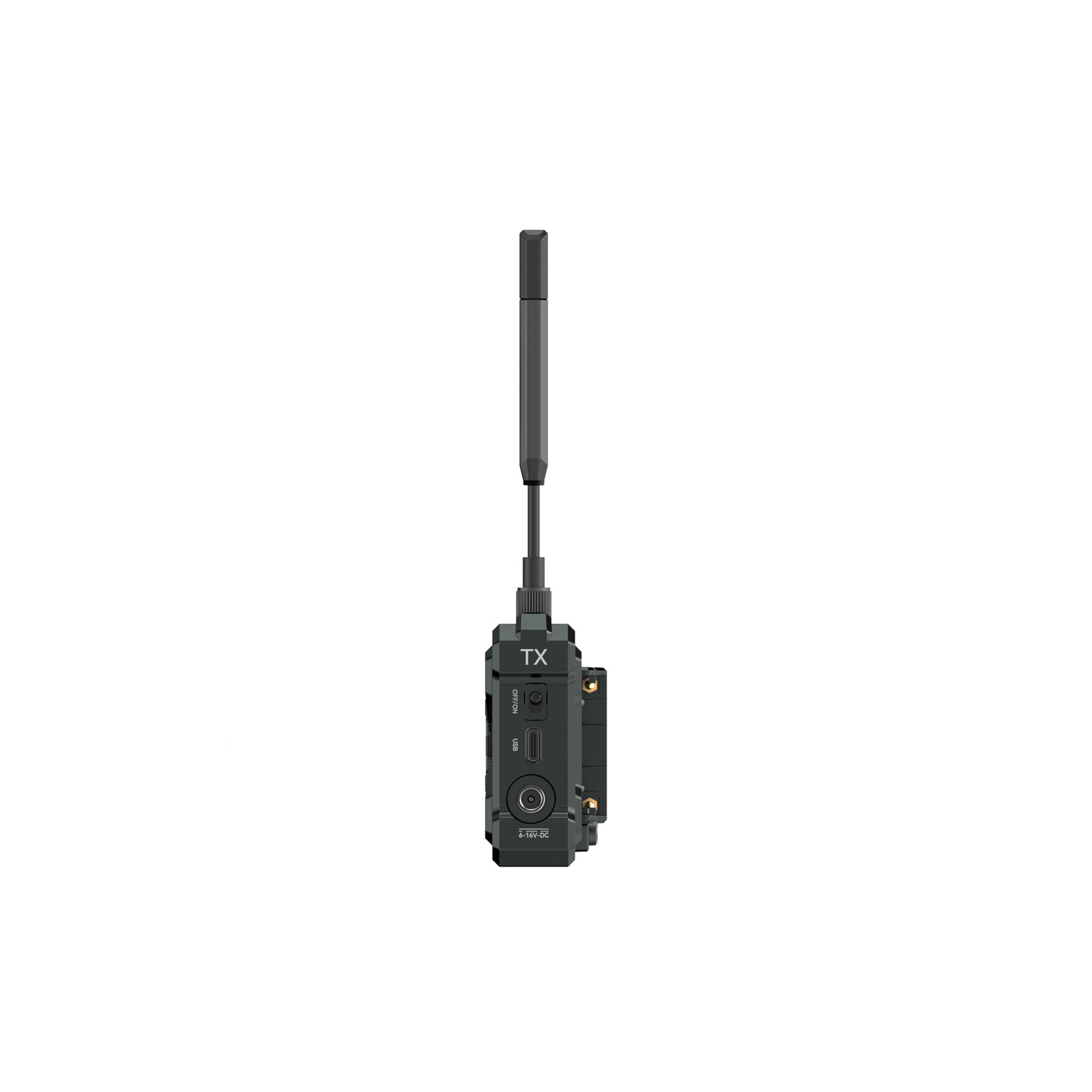

Hollyland Pyro S 4K HDMI/SDI Wireless Video Transmission System
Add 4K30 wireless video transmission to your production using the versatile Pyro S 4K HDMI/SDI Wireless Video Transmission System from Hollyland. The system includes a wireless transmitter, a wireless receiver, seven antennas, a USB-C adapter, a DC power adapter, and an adjustable shoe adapter mount. The transmitter provides HDMI and SDI inputs and features extremely low 50 ms latency that accepts line-of-sight transmission from up to 1300' away to the included receiver. When using broadcast mode using up to four receivers and two mobile devices, the system supports up to 650' away. The receiver outputs to HDMI and SDI.
Each Pyro S unit is equipped with a USB-C port that can power the unit and also supports plug-and-play UVC operation, so it can seamlessly plug into a computer and utilize the wireless video for streaming and conferencing applications. A built-in frequency scanner allows you to select the clearest frequency for your transmission and features a bright LCD for configuration. In addition to the multifunction USB-C port, each unit can be powered using a separately available locking DC power adapter or an L-series type battery using an optional battery plate.
Long Distance, High Quality
The Pyro S Wi-Fi broadcast technology enables one transmitter to connect to four receivers with stable signals, offering more flexibility when additional monitoring needs emerge on set. When Broadcast mode is activated, the transmitter can transmit signals to at most four receivers, and the line-of-sight range reaches 650'. When Broadcast mode is deactivated, the transmitter can transmit signals to at most two receivers and two mobile devices, and the line-of-sight range extends up to 1300'.
Strong Signal Strength
At a stable transmission range of up to 1300', the Pyro S features latency as low as 50ms. Compared to the Mars series, whose transmission range extends at the cost of image quality and latency, the Pyro S excels with increased transmission distance while preserving video quality and minimizing latency. The transmitter/receiver combo also provides two modes for users to tip the balance between image quality and latency, with HD mode for better image quality with bitrate at up to 12 Mb/s and Smooth mode for a dynamic change in latency.
Crisp and Sharp Images
With up to 4K30 transmission capabilities via HDMI and 1080p60 via SDI, the Pyro S transmits images with superior clarity, detail, and realism, making it a great choice for professional applications like broadcast and filmmaking.
USB Video Class
UVC allows seamless compatibility with a wide range of devices, such as computers, without requiring additional drivers or software installations. This plug-and-play feature simplifies setup and operation, making it convenient for users in various scenarios, such as live streaming and video conferencing.
RTMP
Input your wireless key and connect a network card to stream video directly to live platforms like Zoom, YouTube, Twitch, and TikTok.
Smart Channel Scan
Upon startup, Pyro S automatically chooses a high-quality frequency channel, optimizing the user experience from the outset. Additionally, users can activate the smart channel scan function on the receiver to view real-time feedback on the frequency status, thus ensuring an uninterrupted and reliable experience.
Easy Setup
The Pyro S supports preset grouping and pairing, eliminating the need for users to repetitively and manually set up the transmitter and receivers.
Continuous Power, Multiple Options
In addition to DC input and NP-F batteries, the Pyro S also supports a USB-C power supply (5-12V). A USB power supply option provides convenience, especially when using stabilizers, as it eliminates the need for larger NP-F batteries, reducing overall weight and enhancing maneuverability.
Hollyland Shoulder Strap for Pyro 7
Hold your Pyro 7 transceiver/monitor steady and secure with this Shoulder Strap from Hollyland. The durable strap is adjustable and has a wide design for a comfortable fit. You can wear it around your neck, on your shoulder, or cross-body. The strap connects to your Pyro 7 using integrated locking clasps.
Hollyland Monitor Hood for Pyro 7
Reduce glare when using your Pyro 7 transceiver/monitor outdoors with this Monitor Hood from Hollyland. By reducing glare, the image can be viewed more accurately in bright lighting situations. The sun hood easily snaps onto the front of the Pyro 7 unit, keeping all controls and antennas accessible, and it folds down for storage.
Hollyland Side & Bottom-Mounted Aluminum Handle for Pyro 7 / Mars M1 Enhanced
Add support to your Pyro 7 monitor/transceiver with this Side & Bottom-Mounted Aluminum Handle from Hollyland. The lightweight handle mounts onto the side or bottom of the monitor to add stability in either horizontal or vertical mode and convert it to a director's monitor. The durable aluminum handle mounts onto the monitor using an integrated 1/4"-20 thumbscrew. It can also be paired with a separately available second handle or other grip accessory, and it is also compatible with the Mars M1 Enhanced unit.
Key Features
- Pyro 7 Transceiver/Recording Monitor
- Pyro S 4K Transmitter & Receiver Kit
- Monitor Hood, Shoe Mount, Pyro 7 Handle
- SDI/HDMI I/O, 1300' Transmission
