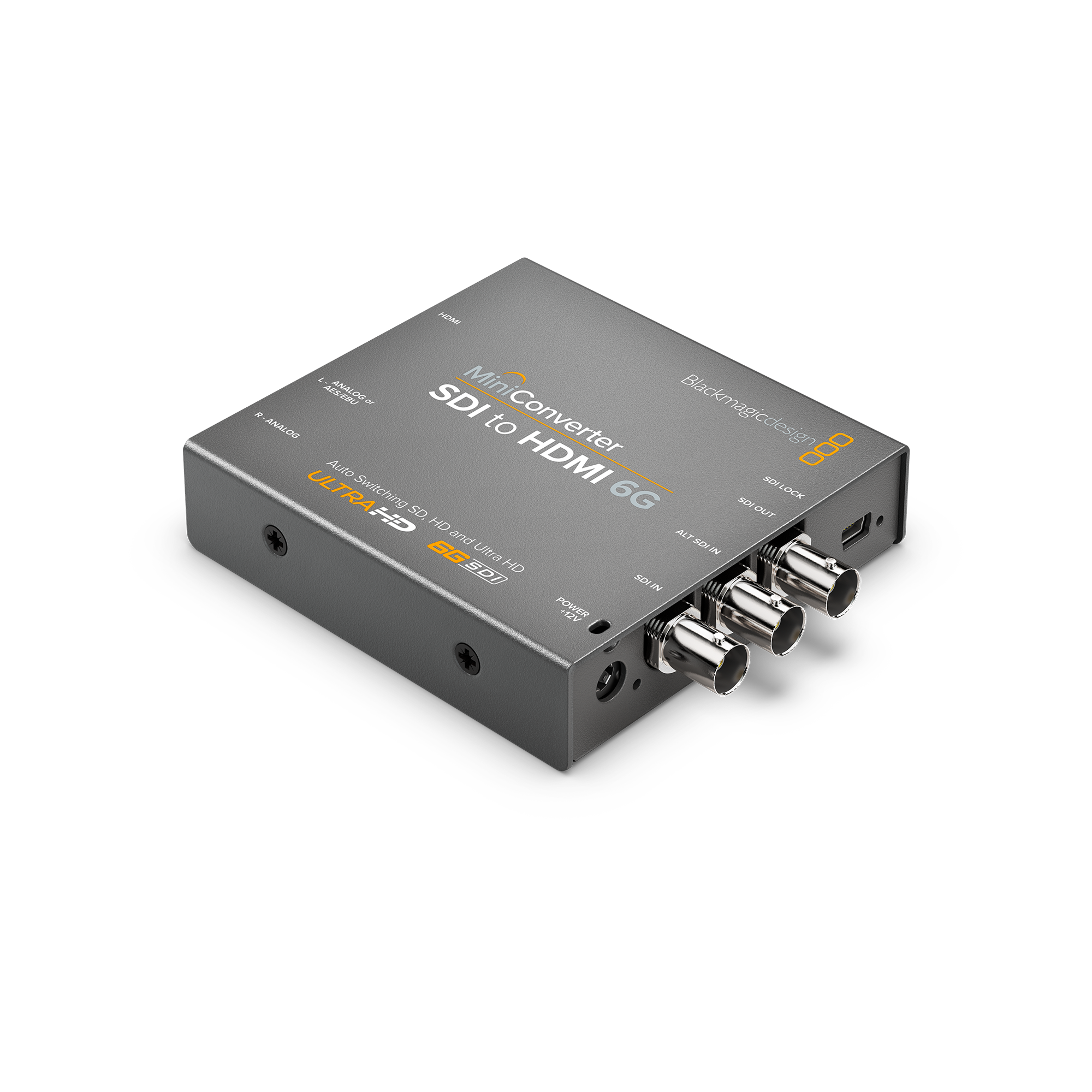

Blackmagic Design SDI to HDMI 6G Mini Converter

The Blackmagic Design SDI to HDMI 6G Mini Converter converts SDI in resolutions up to DCI 4K (4096 x 2160) at 24p and UHD 4K (3840 x 2160) up to 30p to HDMI. This is useful for connecting consumer devices that require HDMI signals with professional SDI video equipment. With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post production, and professional AV applications.

Using 4K HDMI and 6G-SDI technologies, the Mini Converter automatically detects the input video format and instantly changes between SD, HD, and UHD/DCI 4K formats. Featuring two SDI inputs, and both an SDI and HDMI output, the unit will automatically switch from the main SDI input to the alternate input if the main input fails. Audio is de-embedded from the SDI input and available in the HDMI output as well as the AES/EBU or analog audio output.

Key Features

• 2 x 4K SDI Input
• 1 x HDMI Type A and 1 x SDI Output
• Supports SD, HD, UHD 4K & DCI 4K Signals
• Automatic Input Signal Detection
• 24-Bit, 48 kHz Audio
• Analog & AES-EBU Digital Audio Outputs
• De-Embeds Audio from SDI

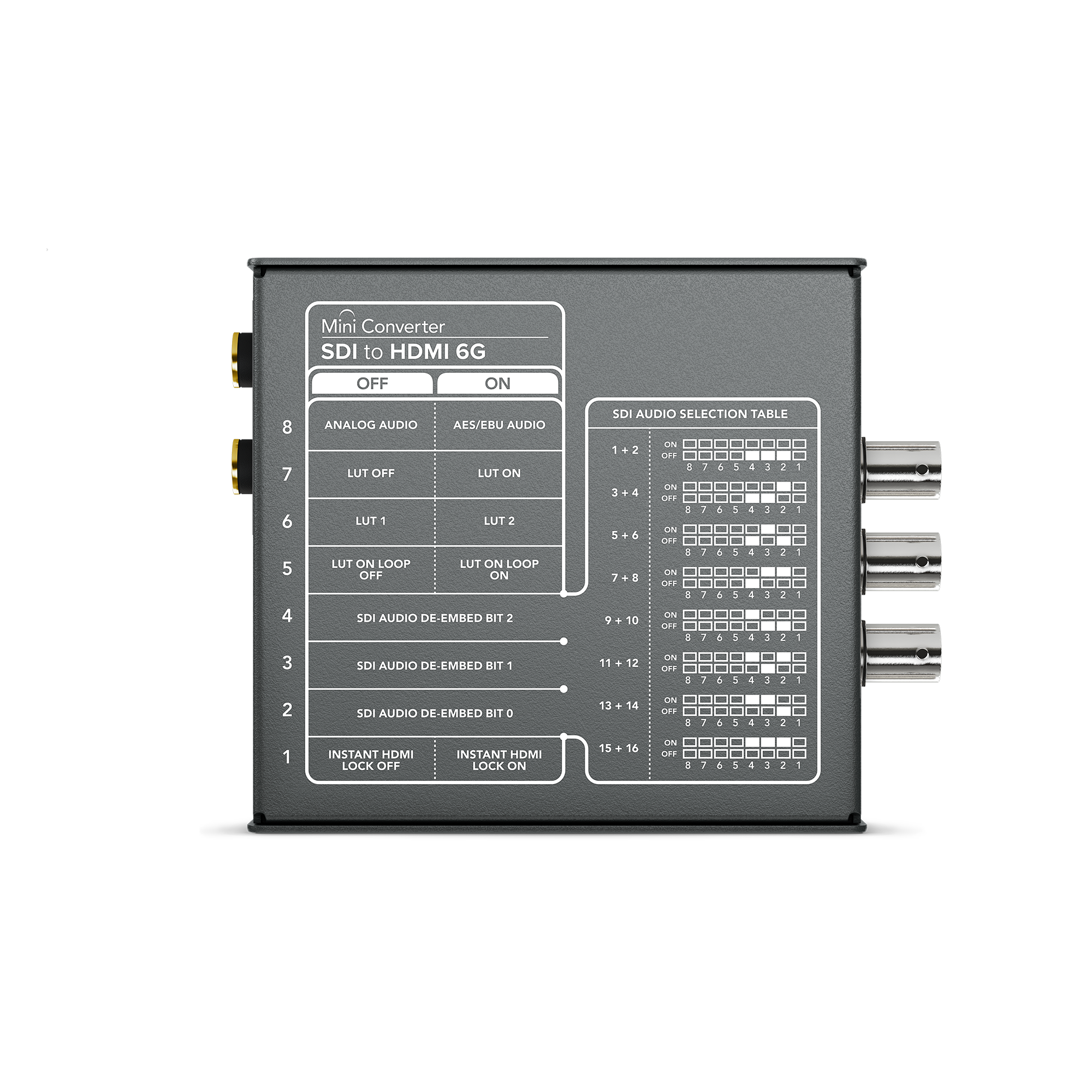

• Settings via Mini Switches or Software
• USB 2.0 Port for Firmware Updates
• 12V Universal Power Supply Included

In The Box

• Blackmagic Design SDI to HDMI 6G Mini Converter
• 12V Power Supply with International Socket Adapters
