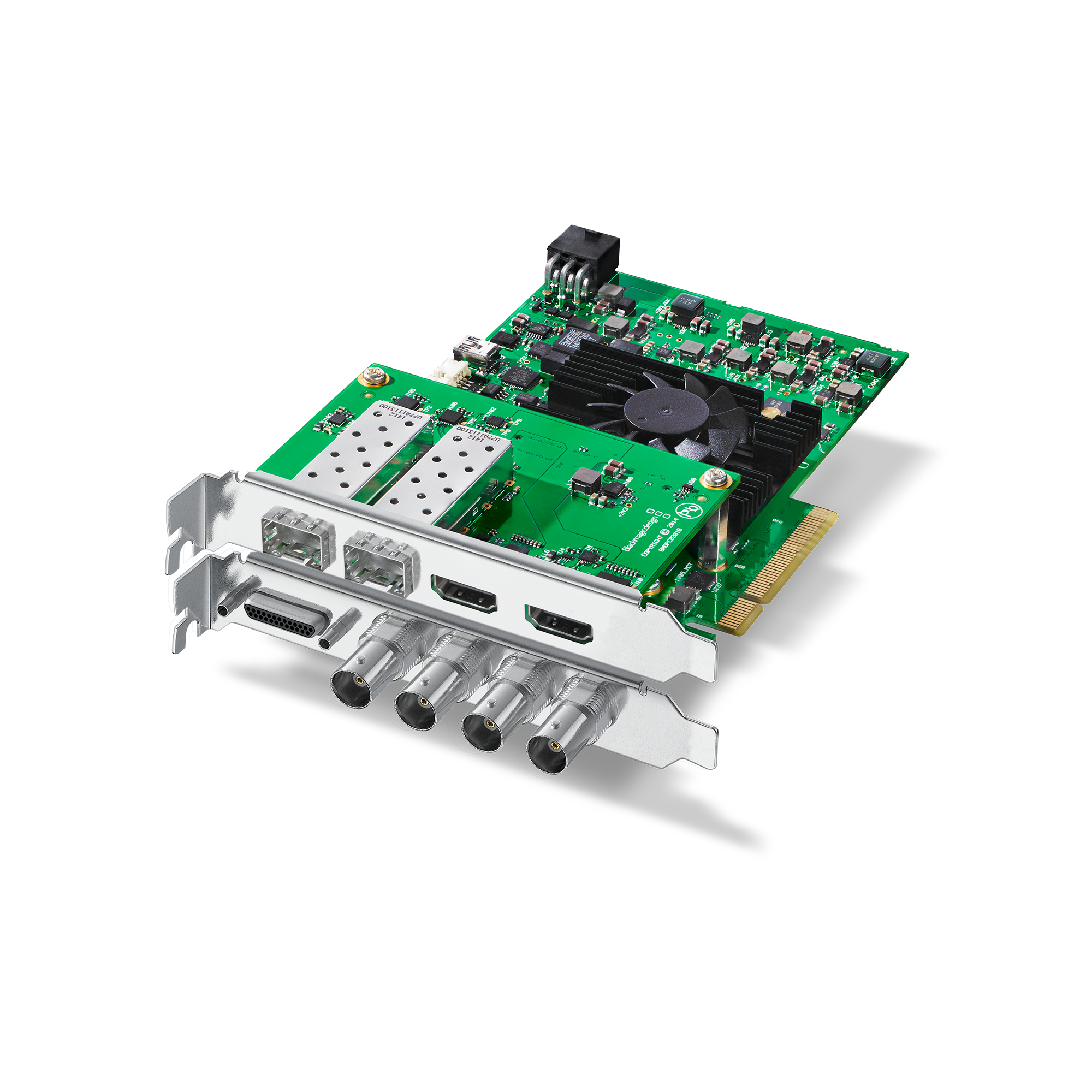

The Blackmagic Design DeckLink 4K Extreme 12G is an 8-lane PCIe Gen2 digital cinema capture and playback card with two multi-rate 12G-SDI inputs and outputs that accept resolutions from SD up to DCI 4K (4096 x 2160) at 60 fps. The card supports 10-bit YUV and 8-, 10-, and 12-bit RGB color, as well as up/down/cross conversions and 3D stereoscopic output at full bandwidth 4:4:4:4 RGB. The DeckLink 4K Extreme 12G features a mezzanine card design that has 4K HDMI input and output connectors on a second daughter card, along with connections for adding two optional optical fiber modules for Dual Link optical fiber SDI input and output. The card also supports AES/EBU balanced XLR and unbalanced RCA inputs/outputs, analog video I/O, reference input, and RS-422 control via an included breakout cable.
Key Features
- 8-Lane PCIe Gen2 I/O Card
- Multi-Rate 12G-SDI & HDMI Connections
- Supports UHD 4K & DCI 4K up to 60 fps
- Single & Dual-Link 4:4:4:4/4:2:2 Signals
- 3D Stereoscopic SDI Output at 4:4:4:4
- Up/Down/Cross Conversion
- Optional Optical Fiber I/O Modules
- Breakout Cable for Analog / RS-422
- Genlock & Deck Control
- Compatible with Mac, Windows & Linux
In The Box
- Blackmagic Design DeckLink 4K Extreme 12G
- HDMI Mezzanine Card
- Breakout Cable for Analog I/O and RS-422 Control
- SD Card with Software
