ADDERLink XD612 dual-head KVM extender TX & RX Pair

A high-resolution single or dual-head KVM extender. High-definition video, USB 2.0 and audio are transmitted on a single CATx or fiber cable.

High performance KVMA extender that is designed to provide reliable and real-time access to critical computers - regardless of the location, while maintaining the same user desktop user experience.

Key Features

• Technical Specifications
• Video resolutions
• • The system supports up to 2 heads at
• resolutions to a maximum of 1920x1200
• @60Hz
• Software compatibility
• • All known operating systems. No drivers
• required
• Extension technology
• • 5Gb/s CATx or 10Gb/s fiber with ultra
• low latency adaptive video stream
• compression
• Connections

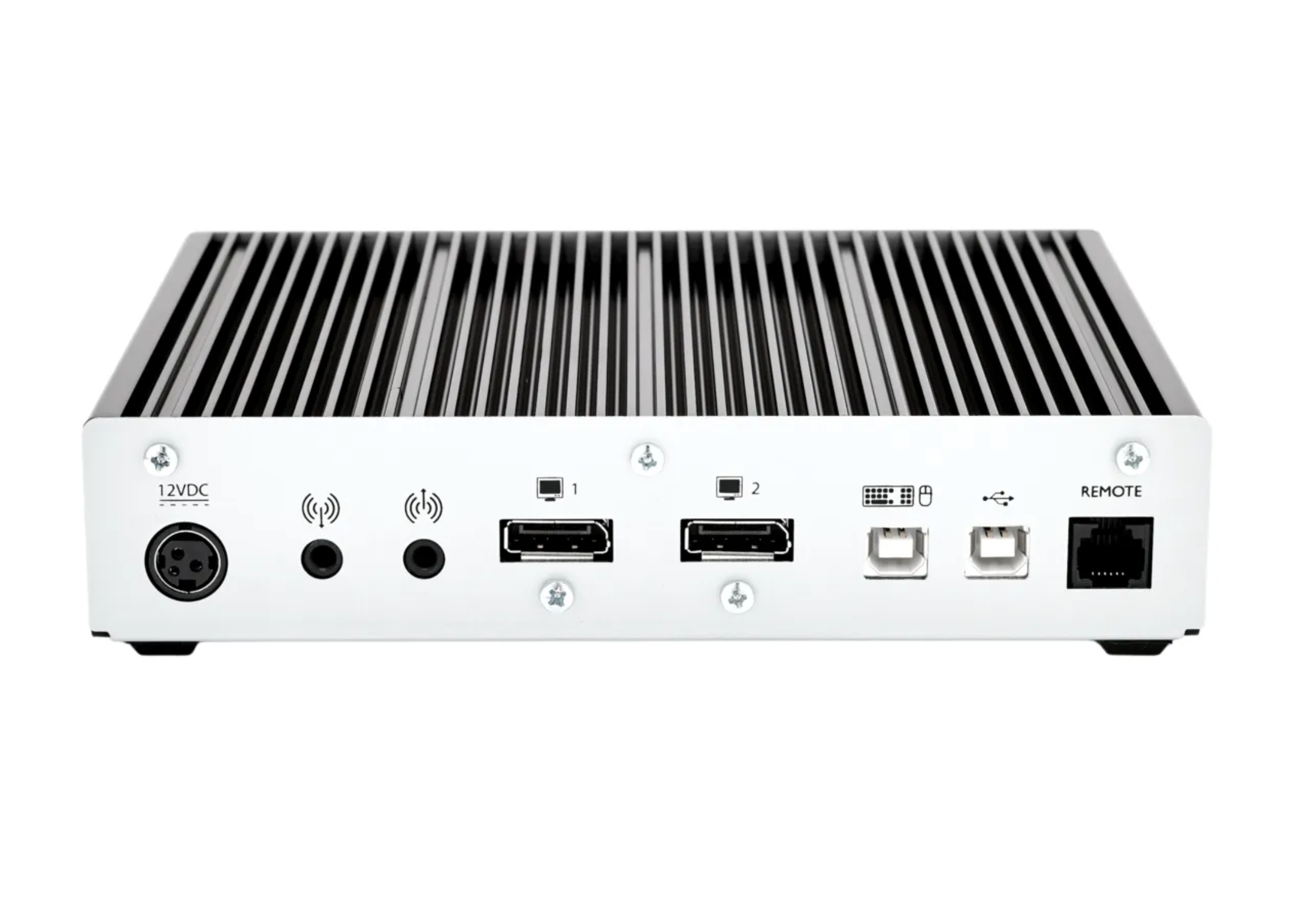

• Local unit - Transmitter (TX)
• • 4x Tri-color status LEDs, DisplayPort™ in
• and local pass-through out, 2x USB2.0
• Type-B, line in and out analog audio, RJ12
• serial port, RJ45 and SFP+ ports

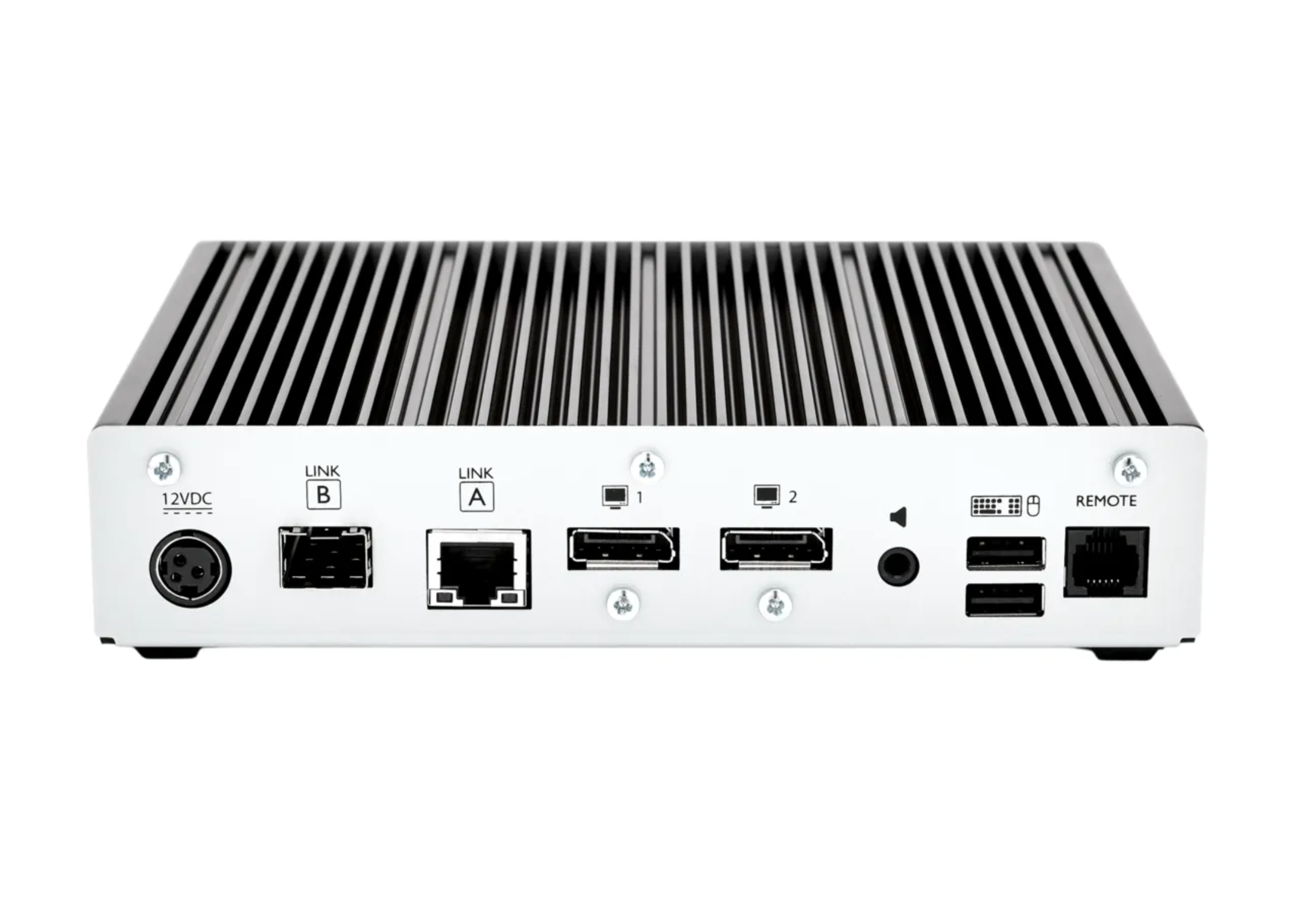

• Remote unit - Receiver (RX)
• • 4x Tri-color status LEDs, 2x DisplayPort™
• out, 4x USB2.0 Type-A full-speed, mic in,
• headset and speaker out, RJ12 serial port,
• RJ45 and SFP+ ports
• Physical Design
• Robust metal construction
• • TX and RX: 186mm/7.32”(W) x
• 39mm/1.54”(H) x 148mm/5.83” (D)
• • TX: 1.29kg/2.84lbs
• • RX: 1.24kg/2.73lbs
• Power supply
• • 100-240 VAC, 47/63Hz
• • 12 VDC 18W output from power supply
• unit
• Operating temperature
• • 0ºC to 40ºC/32ºF to 104ºF
• Storage temperature
• • -10ºC to 50ºC/14ºF to 122ºF
• Humidity
• • 0% to 80% (non-condensing)
• Approvals
• • UKCA, CE, FCC, ICES, RCM, cULus
